Wide Variety of Beamsplitter Types Including Polarizing, Non-Polarizing, and Laser Line
Customized Solutions for Prototype to Volume Production
Design and Application Expertise for Complex Coating and Geometry Needs
Coating Capabilities from 350 – 1620nm

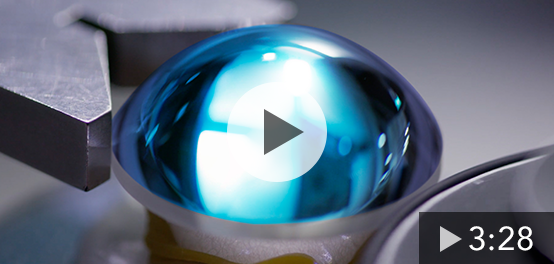

Edmund Optics® is a premier manufacturer of cube and plate beamsplitters for applications ranging from the ultraviolet (UV) to the infrared (IR) wavelength spectra. Our expert optical design and manufacturing engineers develop customized solutions for both prototyping and volume production, supporting you throughout your entire product development process. World-class metrology ensures that all beamsplitters meet your application requirements. What can we make for you?
Our beamsplitters are manufactured from a wide variety of SCHOTT, Ohara, and CDGM materials. Whether you require several beamsplitters for prototyping, a few dozen for pre-production, or large quantities for mass production, we can develop a solution tailored for your application. Some values may depend on material and the other required specifications.
| Beamsplitter Manufacturing Capabilities | ||||
|---|---|---|---|---|
| Commercial | Precision | High Precision* | ||
| Dimensional Tolerance | > ±0.15mm | ±0.08 to ±0.15mm | ±0.04 to ±0.07mm | |
| Dimensions | 5 - 75mm | 5 - 75mm | 5 - 75mm | |
| Irregularity (or Flatness) | 1.0λ | λ/8 | λ/20 | |
| Surface Quality (Scratch Dig) | 80-50 | 40-20 | 10-5 | |
| Max Bevel (Face Width @ 45°) | ±0.5mm | ±0.3mm | ±0.05mm | |
| Beam Deviation | ±5 arcmin | ±3 arcmin | ±0.5 arcmin | |
| |Ts – Tp| (Broadband Non-Polarizing) | <10% | <8% | <6% | |
| |Ts – Tp| (Laser Line Non-Polarizing) | <6% | <3% | <2% | |
| Splitting Ratios (Non-Polarizing) | 30/70 to 90/10 | 30/70 to 90/10 | 30/70 to 90/10 | |
| Splitting Ratio Tolerance | ±15% | ±10% | ±5% | |
| Extinction Ratio (Polarizing) | 100:1 | 500:1 | > 1000:1 | |
| Wavelength Range | 400 - 1620nm | 400 - 1620nm | 350 - 1620nm | |
Join us for a discussion about different types of beamsplitters and
how to best use them to maximize performance in your application.
Contact us with your system requirements and our expert staff of optical manufacturing engineers will partner with you to ensure we deliver beamsplitters that meet your application’s needs within your budget.
How can we help meet your
budget, performance, and schedule requirements?
